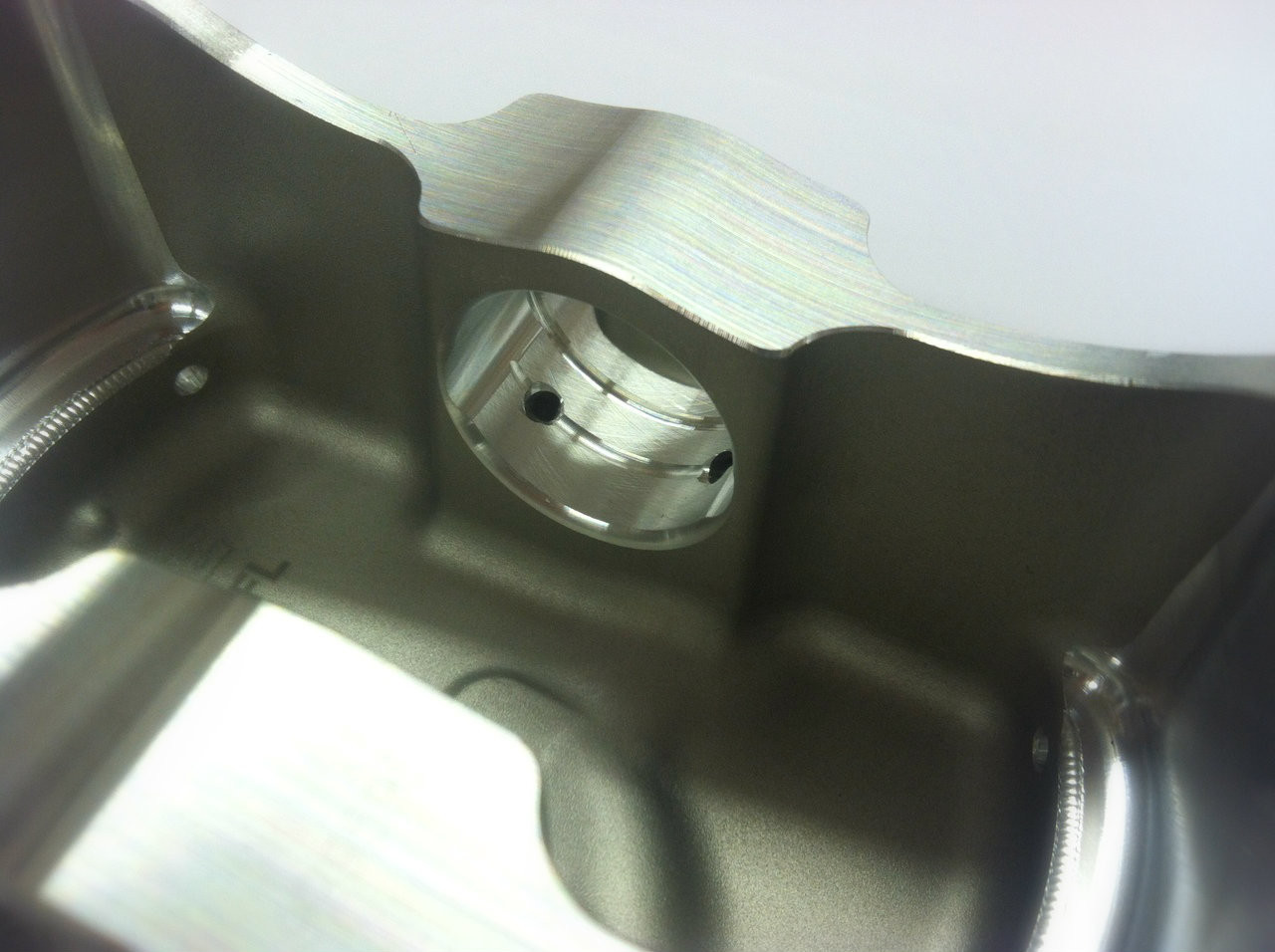

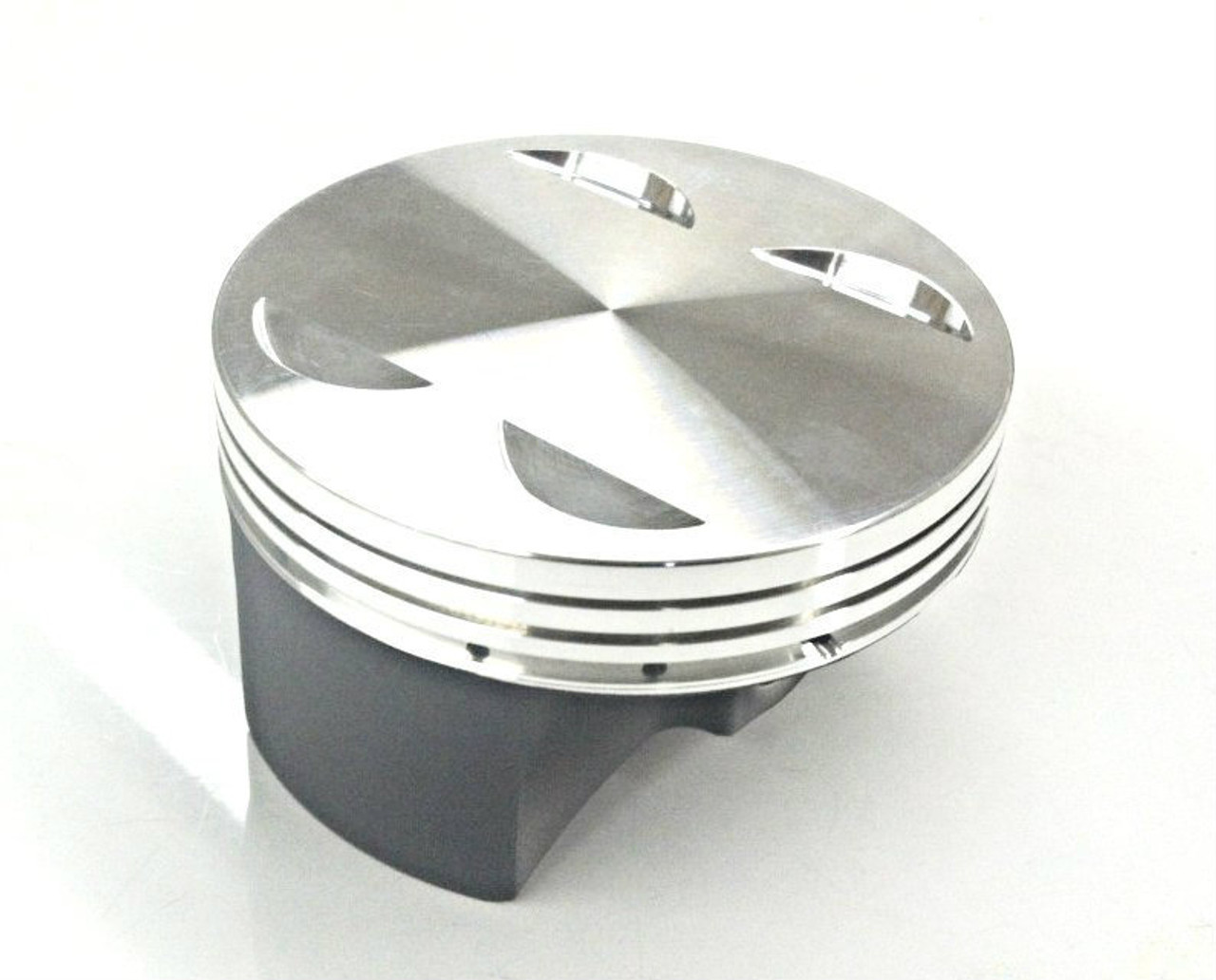

The Schnitz Racing 685cc Piston Kit for the '96-'20 Kawasaki KLR650 is guaranteed to reduce vibration, eliminate oil burning and increase horsepower throughout the entire RPM range of the engine. This kit really wakes up the KLR650 and gives the bike an entire new feel. These pistons have been designed by Schnitz Racing to our specifications and are the original!
Features:
- 102.5mm - 685cc
- Moly Coated Skirt
- Dual Pin Oilers

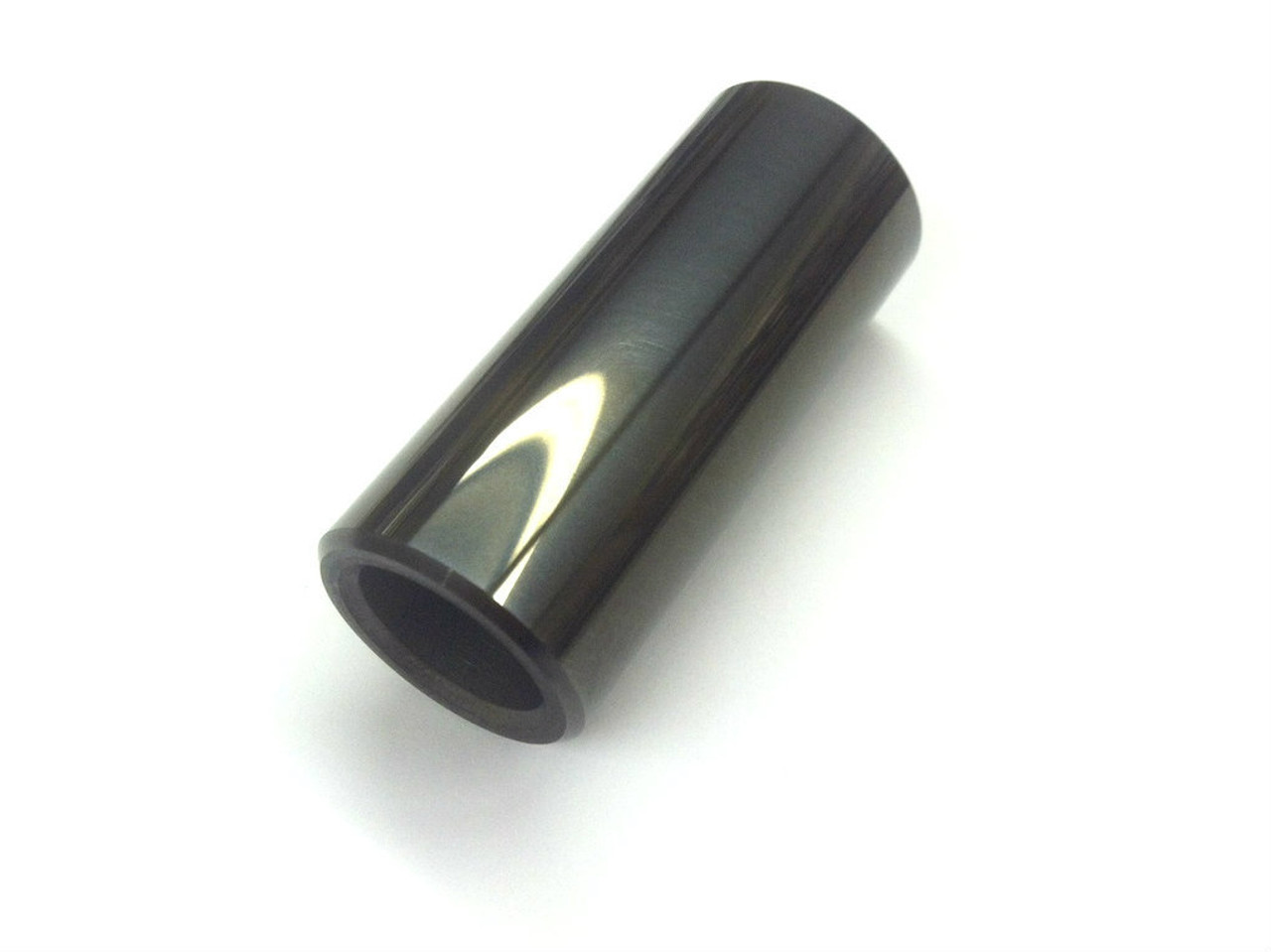

- DLC Coated Piston Pin
- 83 grams lighter than stock
- 9.7 to 1 Compression
- Valve relief to clear 40/36mm Valves
- Std. Tension Oil Ring
Top Ring Ductile Iron Plasma Moly Barrel Face Back Cut Torsional
2nd Ring Iron Phosphate Taper Face Back Cut Reverse Torsional
Oil Ring Carbon Steel Chrome Full Seal Flexvent

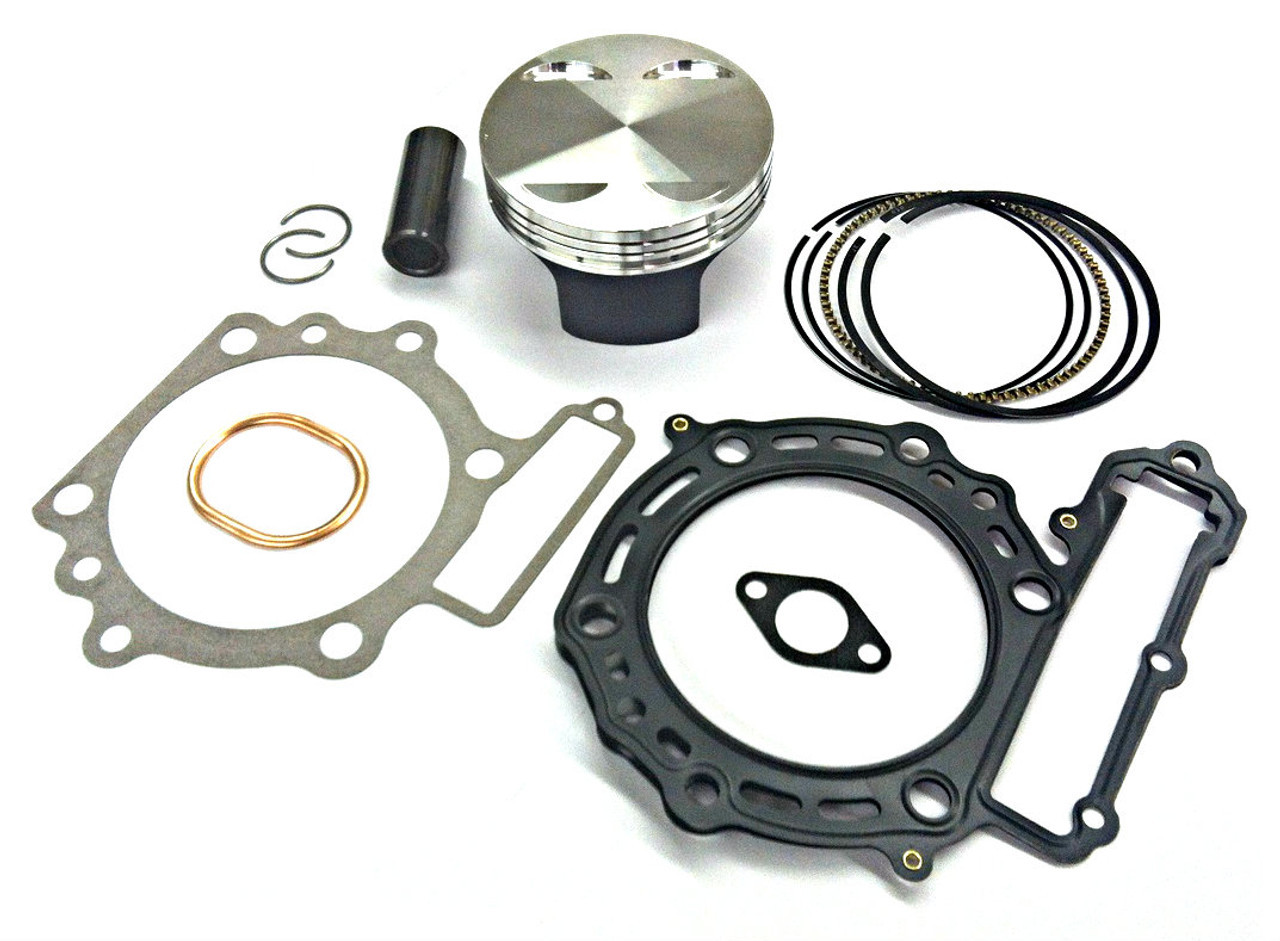

*Now using the factory OEM base gasket in our complete kit.
